Lightweight 3.3-5.0V Embedded Gps Module With CE Certification

  • 1
  • 2

Model Number : YW18184Z3

Price : USD 3.0-5.0 Unit

Brand Name : Youwei

Certification : CE，Rohs

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Paypal

Supply Ability : 200000 PCS MONTH

Delivery Time : 6-10 days

Packaging Details : PE Bag Cartons

Type : GNSS Module

Country of Origin : China

Brand : Youwei

Chipset : AT6558,AT6558F,AT6558R,AT6668B

Application : Gnss module

Product name : YOUWEI

Chip : YW18184Z3

Payment : Paypal\TT\Western Union\Trade Assurance

Feature : Band

D/C : Newest

Battery : Internal back-up battery

Operating temperature range : -40 to 85℃C

description : GNSS module

Cetificate : ISO9001

Supply Voltage : DC 3.3-5.0V

Contact Now

International Antenna Car Recorder Vehicle Navigation System Gps Tracking Receiver Module

1.Product Feature

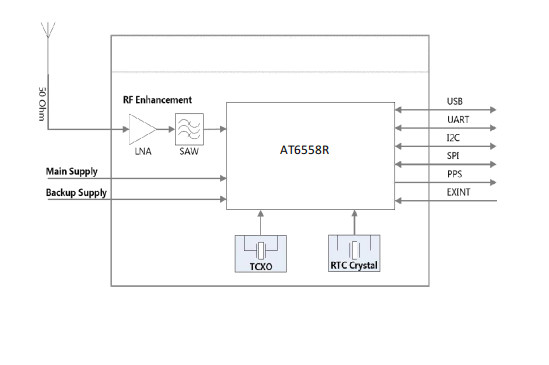

• Build on high performance GNSS single chip AT6558R
• 72 channels in Search mode
• cold start acquisition sensitivity of -147 dBm and -162 dBm tracking sensitivity
• up to 5Hz navigation update rate
• Supports any two of GPS/QZSS, Beidou,GLONASS, Galileo,SBAS simultaneously by firmware support
• Supports AGPS
• Integrated TCXO,LNA,SAW,RTC
• Compact size (18.1mm x 18.1mm x6.2mm±0.1mm ) suitable for space-sensitive application
• Support standard NMEA

2.Product Application

• Handheld GPS receiver application
• Automotive application
• Ideal for PDA, Pocket PC
• Car navigation and tracking
• Geographic Surveying
• AVL and Location-Based Services
• Sports and Recreation
• Timing application
• Marine Navigation, Fleet Management
• UAV
3.Antenna
The YW-18184Z1 module are designed for use with passive and active antennas.
18.1*18.1*6.2mm
Minimum gain
15 dB (to compensate signal loss in RF cable)
Active Antenna Recommendations
Maximum gain
30 dB
Maximum noise figure
1.5 dB
4.Product details
Lightweight 3.3-5.0V Embedded Gps Module With CE CertificationLightweight 3.3-5.0V Embedded Gps Module With CE Certification
5.Shipping
Lightweight 3.3-5.0V Embedded Gps Module With CE Certification
6.Certification
Lightweight 3.3-5.0V Embedded Gps Module With CE Certification
